In OZmob, you can view the POPs from your projects, along with their elements and connections. Just like other elements, it’s not possible to add a new POP through the app.

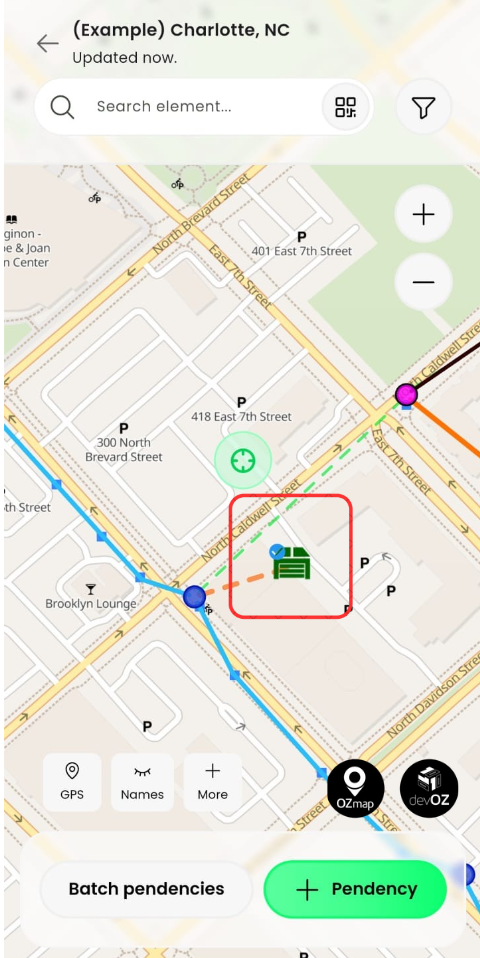

The POP will appear like this on the map:

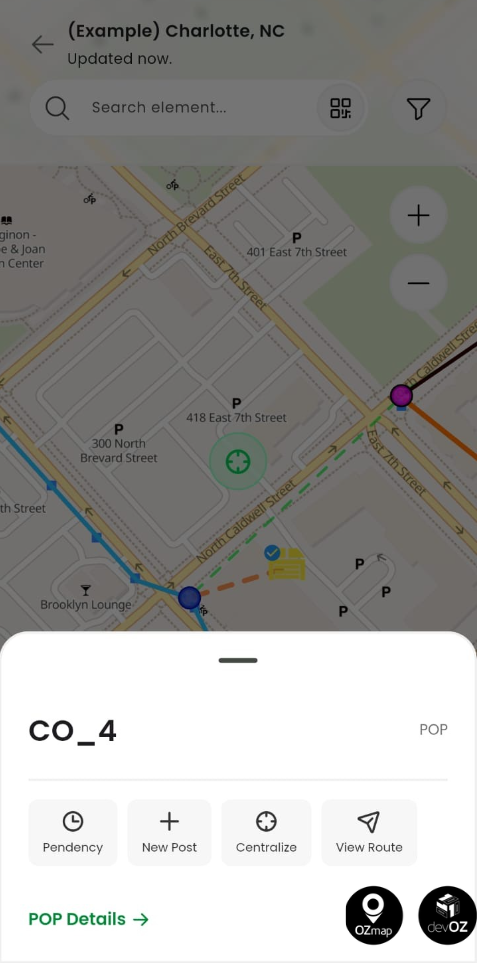

When you click on the POP, a panel will open with several options. The first button allows you to add a new pendency linked to the POP; the second one lets you create a new post (to learn more about posts, click here). Next to it, you can center the POP on the map, and finally, trace a route to the POP using your map app (Google Maps, Waze, etc.).

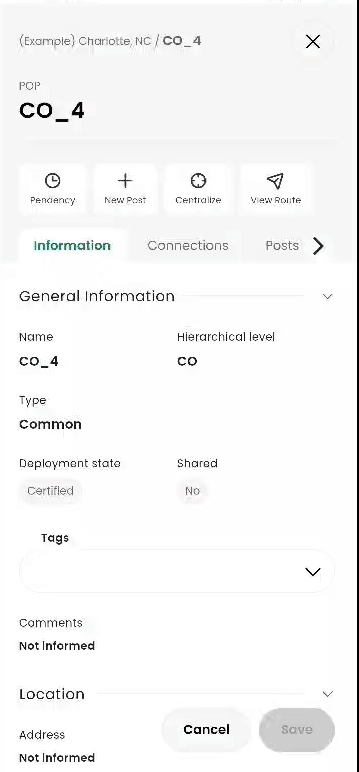

Further down, you can click on the “POP details” option to view more information about it.

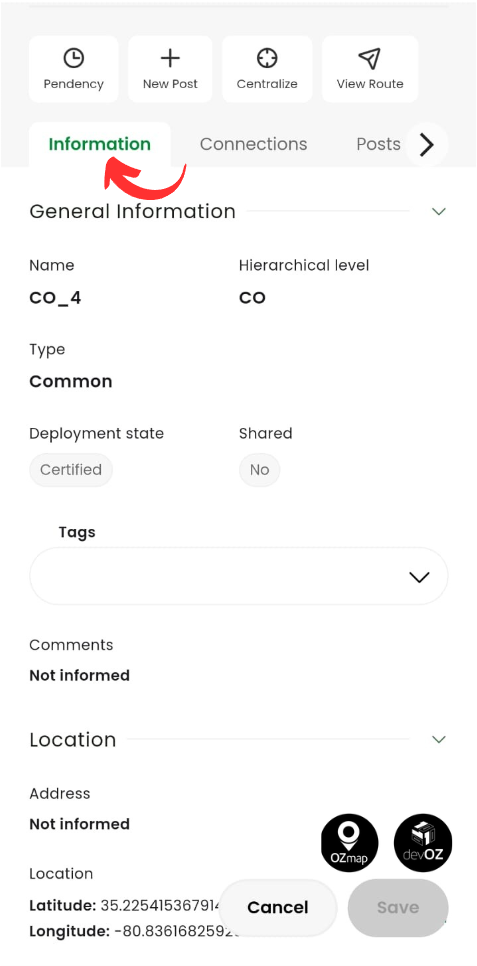

When you open the POP details, you’ll see the “Information” tab, which contains the POP’s name, deployment status, notes, and other details.

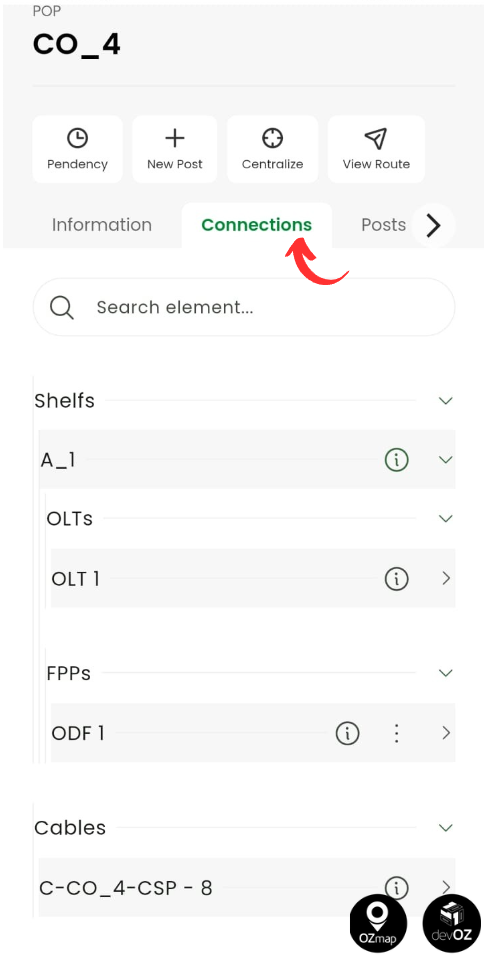

In the “Connections” tab, you can view all the equipment added to the POP and their connections. To see the fibers and ports, click the “>” button to expand the information. And if you want to view details about the cable or equipment, just click the “i” button.

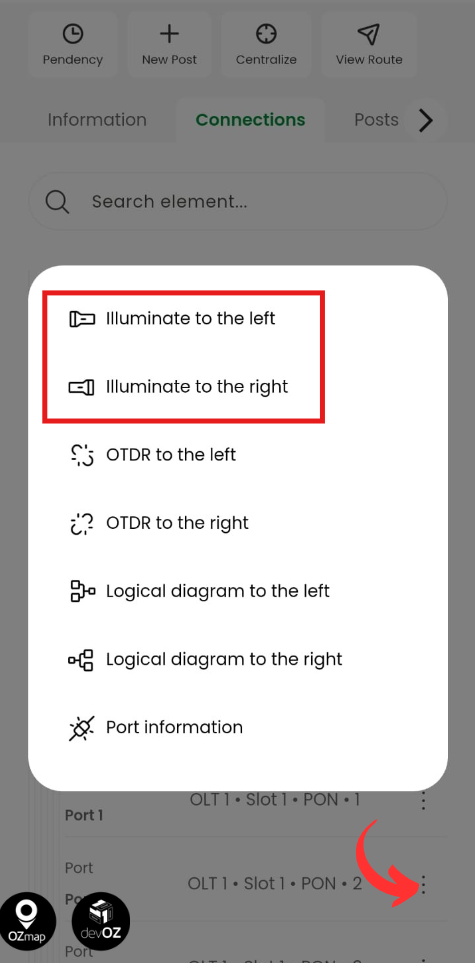

To illuminate the fibers through the POP, select the desired fiber or port, click on the three dots highlighted in the image, and choose the direction you’d like to illuminate.

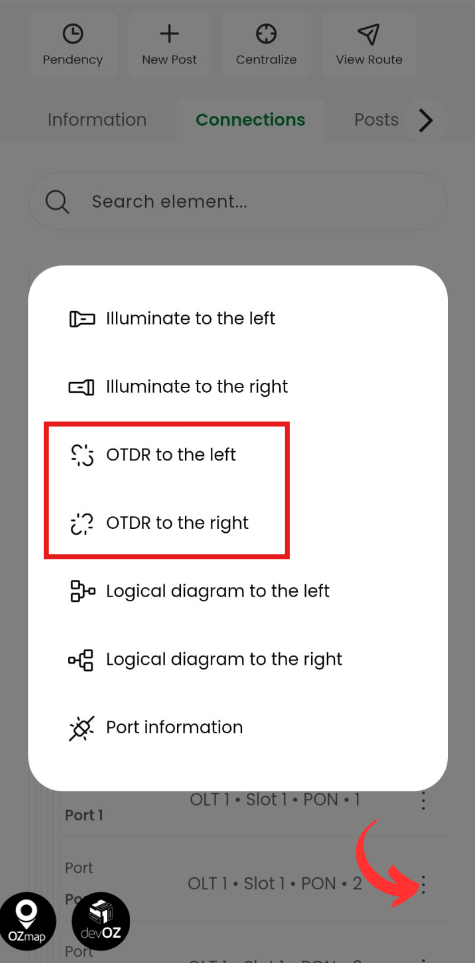

You can also view the fiber’s OTDR. To do this, click on the three dots highlighted in the image and select the direction in which you’d like to measure the OTDR.

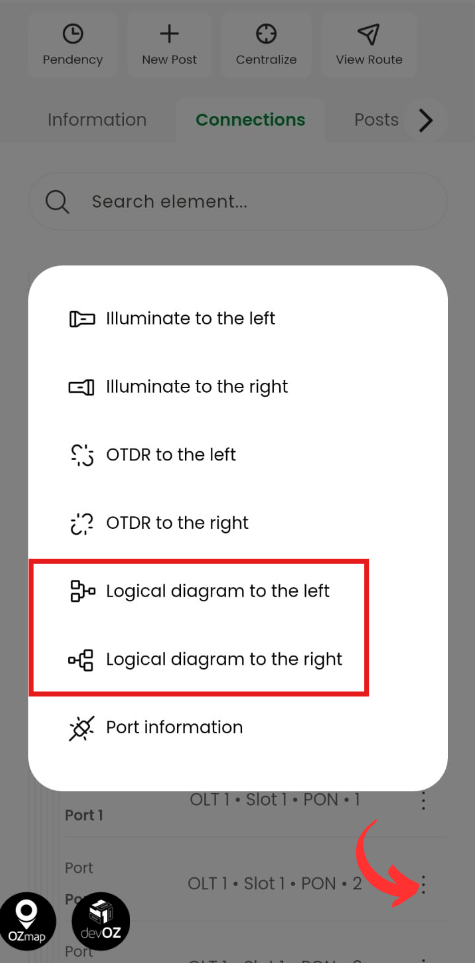

The logical diagramin the POP can be generated for each port, just like with illumination, or for the entire slot on the OLT, and for the whole equipment in the case of a DIO, by clicking the icon highlighted in the image.
You can view the route from your current location to the POP using your preferred map app. To do this, simply click the “View Routes” button and select the map application.

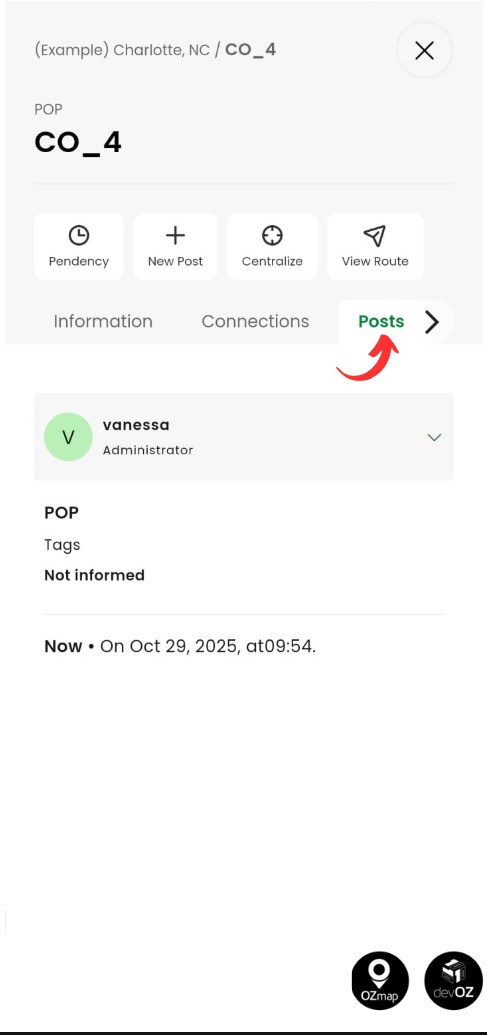

To view the POP’s posts or create new ones, just go to the “Posts” tab.

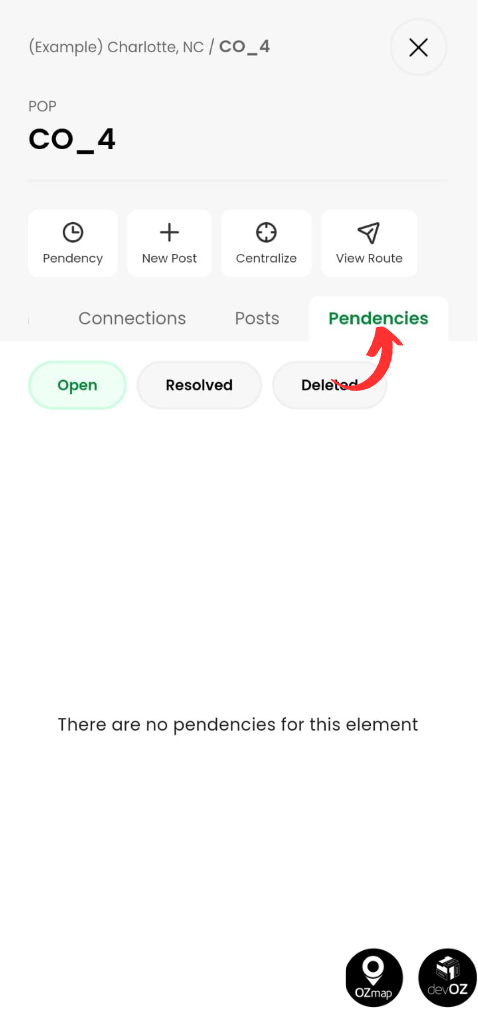

In the “Pendencies” tab, you can view all pendencies linked to the POP and filter them by open, resolved, or deleted.
