In OZloc, there are two feasibility modes available: by radius and by poles. In this article, we’ll focus on the feasibility by radius, but you can find more details about the feasibility by poles here.
Feasibility by radius allows you to search for boxes with available service capacity that are within the radius defined in the system settings, without needing to document the poles on the map.

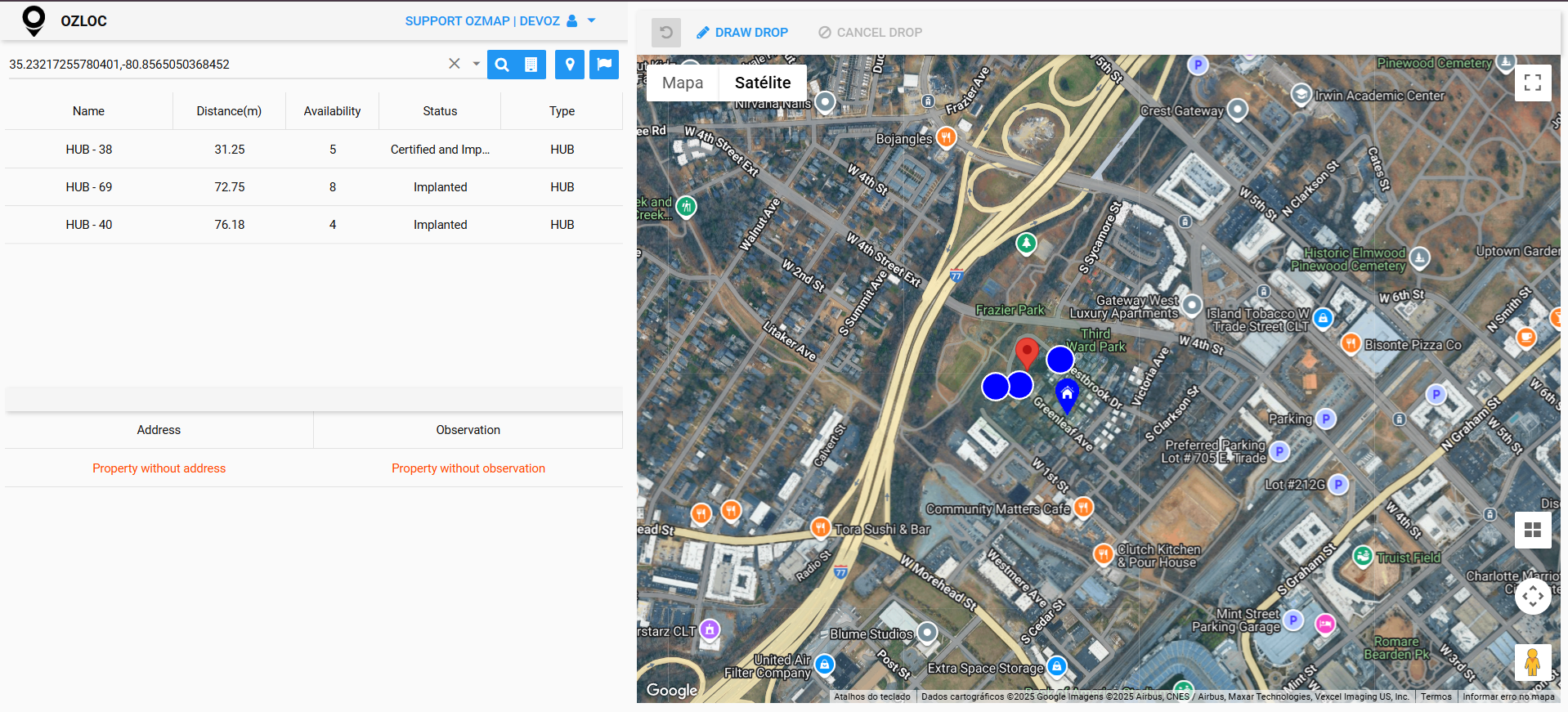

With feasibility by radius, when you search for an address or coordinates, the system will look directly for boxes and properties instead of searching for poles.

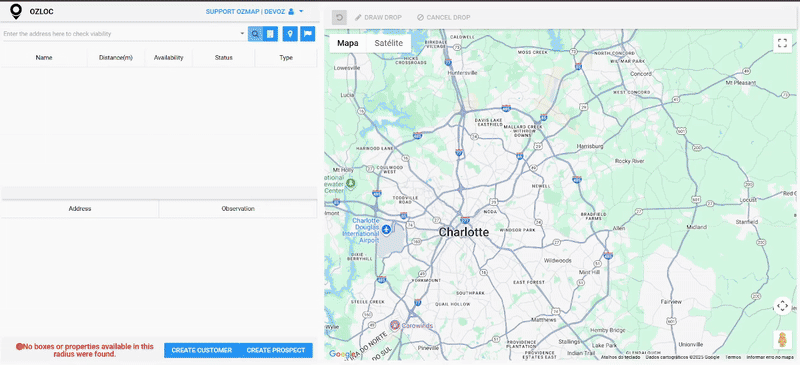

After the available boxes appear, click the “Draw drop” button and trace the client’s cable path to the box, then continue with the creation process. This path drawn by the seller will be automatically applied in OZmap.
Drawing the drop is not mandatory. If you don’t want to do it, click on the desired box and enter the client’s information. When selecting the box directly, the drop will be created in a straight line.
Closing the sale
When there is feasibility for the sale, selecting the desired box will open a window requesting the information needed to confirm the sale.

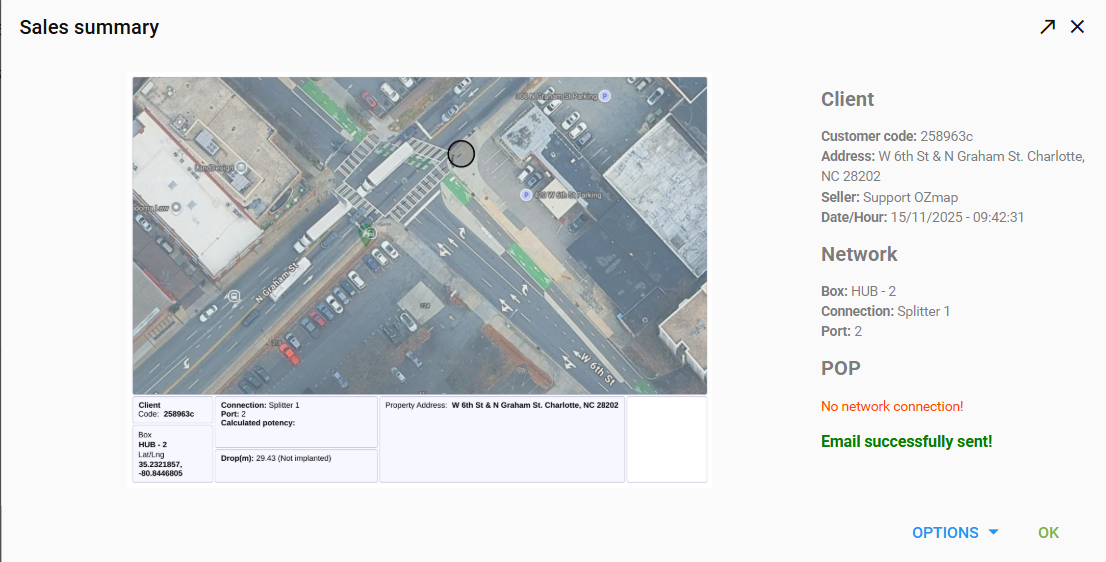

After that, just add the client’s name and code and confirm the sale. The client’s sketch will be generated automatically, and you can export it in either PNG or PDF by clicking the “Options” button and selecting the desired format.
After this confirmation, an email will be sent to the installation team with the client’s sketch and location information, completing the sales process.

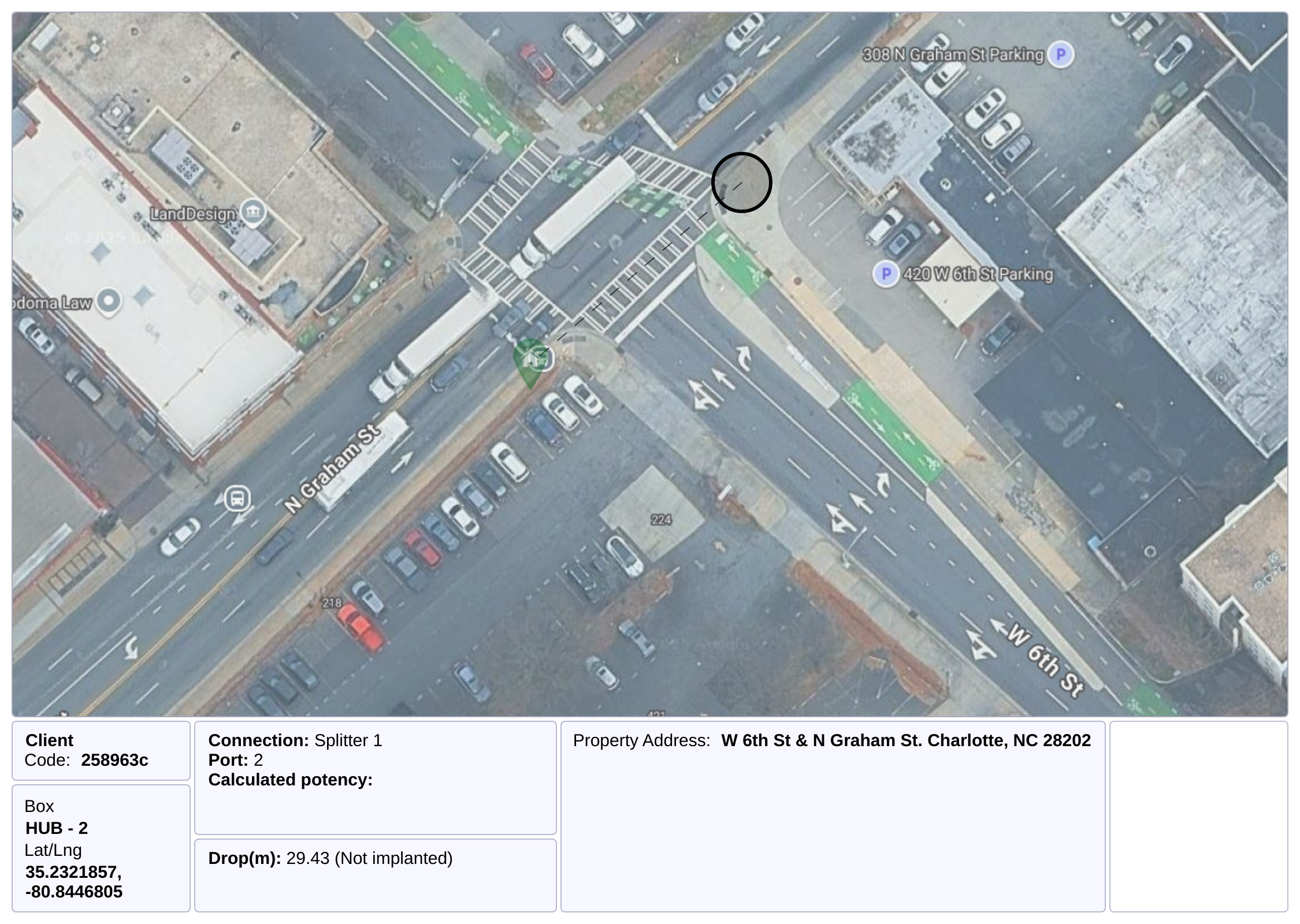

See below the final screen information that will be included in the email, bellow you can view the sketch image that will be forwarded.
Sale without feasibility
If the system only finds boxes without feasibility, a window will open showing the box information and the reason for the infeasibility, as shown in the image below.
For more information about sales without feasibility, click here.
Condominiums
To check feasibility in condominiums, simply click the icon next to the search bar.
Instead of boxes and properties, the system will search only for condominiums within the defined radius.
To complete a sale in condominiums, follow the standard steps described in the condominium sales article.
