The Capacity tool visually displays the number of available client ports within the boxes and condominium.

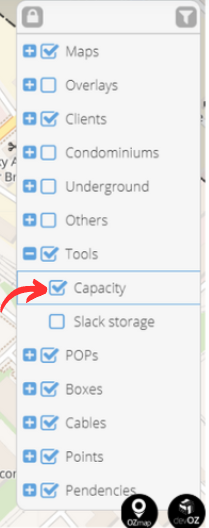

To activate it, simply access the side layer of the map:
This feature is used dynamically, by clicking on the numbers or by zooming in and out of the map.

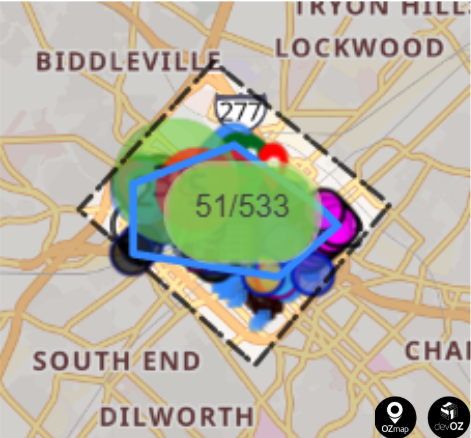

When zooming out, you can see the total number of client splitters available in the project, as well as the number of splitter ports already in use. See the image below:
The image above displays a total of 533 client ports, with 51 currently in use.

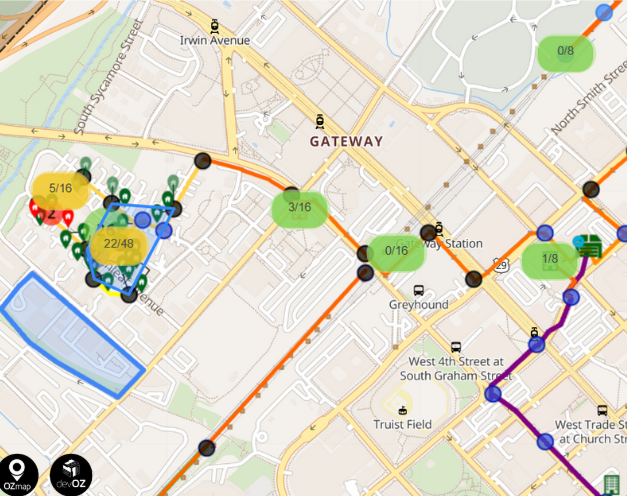

As you zoom in on the map, the capacity numbers cluster according to the location of the boxes. By hovering over a number, you can see the area that this capacity covers. In the image below, you can see several numbers spread across the map: the orange color indicates that the box has reached its maximum capacity, while the green color indicates that there are many boxes with available client splitters.

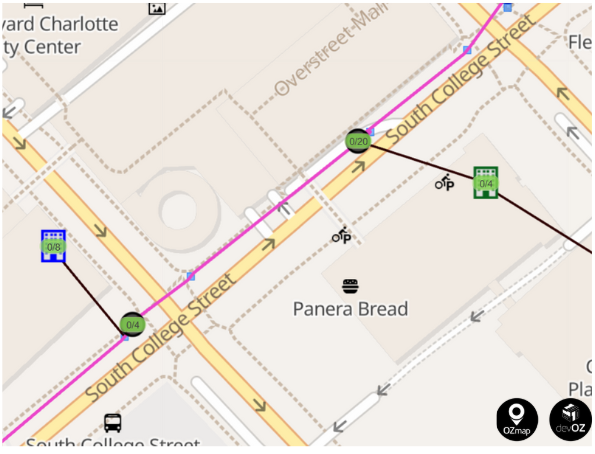

The Capacity feature can also be used for each box or condominium. As you zoom in, the values will appear over their respective elements, indicating their availability. If no values are displayed, it’s worth checking whether the item actually contains equipment that allows client connections inside.
